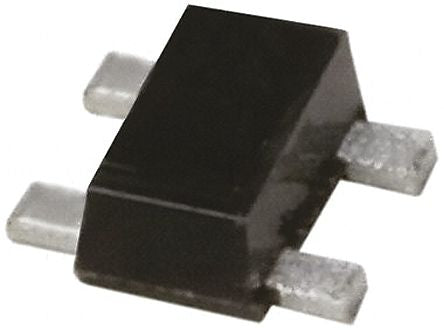

NXP BFU725F/N1 NPN Transistor, 40 mA, 2.8 V, 4-Pin SOT-343F [BFU725F/N1]; 165-8721
by NXP
0₫
Mã kho: 1658721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 40 mA |
| Maximum Collector Emitter Voltage | 2.8 V |
| Package Type | SOT-343F |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 136 mW |
| Minimum DC Current Gain | 160 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 10 V |
| Maximum Emitter Base Voltage | 1 V |
| Maximum Operating Frequency | 12 GHz |
| Pin Count | 4 |
| Number of Elements per Chip | 1 |
| Width | 1.35mm |
| Height | 1mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | SiGe |
