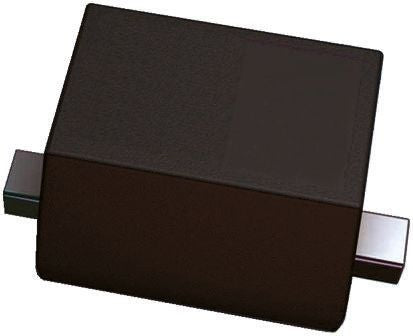

NXP BB181,115 Varactor, 8pF min, 12:1 Tuning Ratio, 30V, 2-Pin SOD-523 [BB181,115]; 166-0356
by NXP
0₫
Mã kho: 1660356
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Application | Tuner, VCO |
Number of Elements per Chip | 1 |
Minimum Diode Capacitance | 8pF |
Maximum Reverse Voltage | 30V |
Minimum Tuning Ratio | 12 |
Mounting Type | Surface Mount |
Package Type | SOD-523 |
Pin Count | 2 |
Tuning Ratio Test Condition | 0.5 → 28V |
Dimensions | 1.25 x 0.85 x 0.65mm |
Height | 0.65mm |
Length | 1.25mm |
Maximum Operating Temperature | +150 °C |
Width | 0.85mm |
Minimum Operating Temperature | -55 °C |
