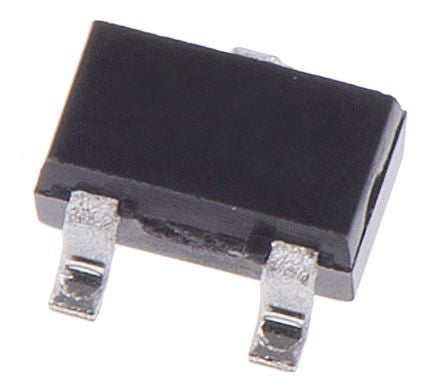

![NXP BAP65-05W,115 1660531](http://nguyenxuong.com/cdn/shop/products/R6261790-01_444x390.jpg?v=1594294391)
NXP BAP65-05W,115 Dual Common Cathode PIN Diode, 100mA, 30V, 3-Pin UMT [BAP65-05W,115]; 166-0531
by NXP
0₫
Mã kho: 1660531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Cathode |
Application | Attenuator, Switch |
Number of Elements per Chip | 2 |
Maximum Forward Current | 100mA |
Maximum Reverse Voltage | 30V |
Typical Carrier Life Time | 0.17µs |
Maximum Forward Voltage | 1.1V |
Mounting Type | Surface Mount |
Package Type | UMT |
Pin Count | 3 |
Maximum Diode Capacitance | 0.8pF |
Maximum Series Resistance @ Maximum IF | 0.9 Ω@ 10 mA |
Dimensions | 2.2 x 1.35 x 1mm |
Height | 1mm |
Length | 2.2mm |
Maximum Operating Temperature | +150 °C |
Width | 1.35mm |
Minimum Operating Temperature | -65 °C |
