| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Maximum Forward Current | 50mA |
| Maximum Reverse Voltage | 50V |
| Typical Carrier Life Time | 1.05µs |
| Maximum Forward Voltage | 1.1V |
| Mounting Type | Surface Mount |

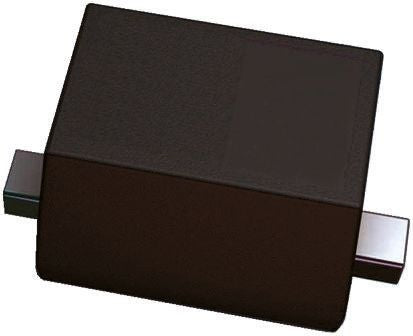

| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 0.35pF |
| Maximum Series Resistance @ Maximum IF | 5 Ω @ 10 mA |
| Dimensions | 1.25 x 0.85 x 0.65mm |
| Height | 0.65mm |
| Length | 1.25mm |
| Width | 0.85mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
