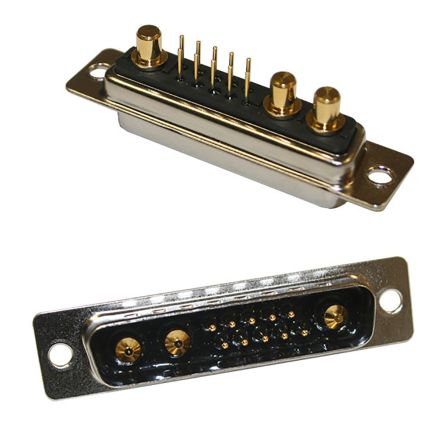

Norcomp 7 Way Vertical PCB D-sub Connector Plug [681S7W2103L001]; 174-8726
by Norcomp
0₫
Mã kho: 1748726
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 7 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| D Connector Type | Mixed Contact D-Sub |
| Termination Method | Solder |
| Current Rating | 5 A, 40.0A |
| Mixed Contact Layout | 7W2 |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 52.832mm |
| Width | 12.446mm |
| Depth | 10.922mm |
| Dimensions | 52.832 x 12.446 x 10.922mm |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold Flash |
| Contact Material | Copper Alloy |
| Series Number | 681S |
