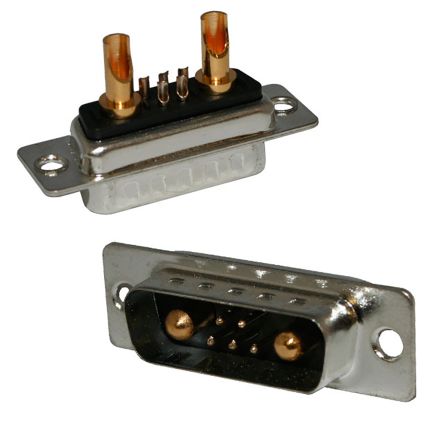

Norcomp 680M Series Panel Mount, 17 Pin Mixed Contact D-Sub D-sub Connector, Vertical Plug [680M17W2103L401]; 174-8741
by Norcomp
0₫
Mã kho: 1748741
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 17 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.54mm |
| D Connector Type | Mixed Contact D-Sub |
| Termination Method | Solder |
| Mixed Contact Layout | 17W2 |
| Current Rating | 5 A, 40.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 53.05mm |
| Width | 12.5mm |
| Depth | 11.0mm |
| Dimensions | 53.05 x 12.5 x 11mm |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold Flash |
| Minimum Operating Temperature | -55.0°C |
| Series | 680M |
| Contact Material | Copper Alloy |
