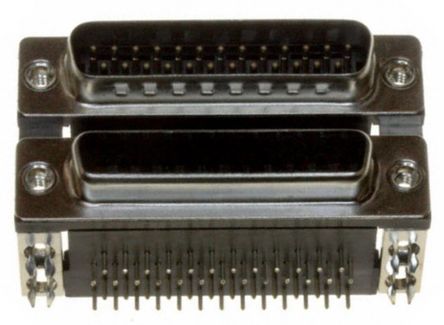

Norcomp 189 Series, 25 Way Right Angle Stacked PCB D-Sub Connector Male/Female, 2.769mm Pitch [189-025-413R491]; 135-4214
by Norcomp
0₫
Mã kho: 1354214
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male/Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.769mm |
| D Connector Type | Dual Ports D-Sub |
| Termination Method | Solder |
| Mounting Hardware | Fork Boardlocks, 4-40 Hex Standoff |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 52.78mm |
| Width | 25.4mm |
| Depth | 29.21mm |
| Dimensions | 52.78 x 25.4 x 29.21mm |
| Series | 189 |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold |
| Contact Material | Brass |
| Minimum Operating Temperature | -55.0°C |
