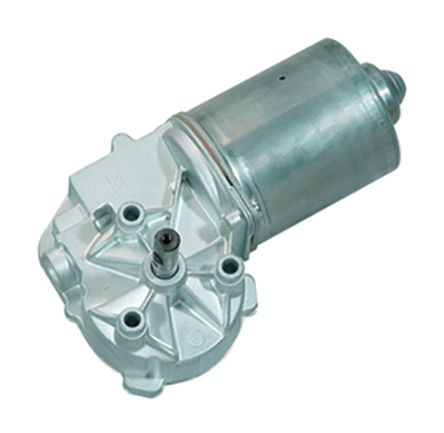

Nidec, 24 V dc, 1 Nm, Brushed DC Geared Motor, Output Speed 270 rpm [404991 DCK31]; 881-4541
by Nidec
0₫
Mã kho: 8814541
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 270 rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 1 Nm |
| DC Motor Type | Brushed |
| Shaft Diameter | 10mm |
| Power Rating | 24.5 W |
| Gearhead Type | Worm |
| Length | 163.3mm |
| Width | 59.8mm |
| Dimensions | 59.8 (Dia.) x 163.3 mm |
| Current Rating | 0.125 |
| Core Construction | Permanent Magnet |
| Series | DCK31 |
| Shaft Angle | Right |
| Gear Ratio | 1.71111111111111 |
| Standards Met | ISO 965-2 |
