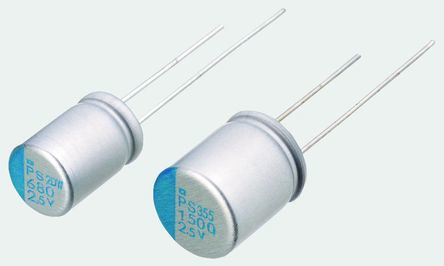

Nichicon Tantalum Capacitor 560μF 10V dc Polymer Solid ±20% Tolerance LG Series [PLG1A561MCO1]; 541-514
by Nichicon
0₫
Mã kho: 541514
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 560 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Equivalent Series Resistance | 11mΩ |
| Lead Pitch | 3.5mm |
| Tolerance | ±20% |
| Height | 9mm |
| Dimensions | 8 (Dia.) x 9mm |
| Series | LG |
| Electrolyte Type | Solid |
| Diameter | 8mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Lead Diameter | 0.6mm |
| Tolerance Minus | -0.2 |
| Terminal Type | Through Hole |
| Tolerance Plus | 0.2 |
| Leakage Current | 1120 μA |
