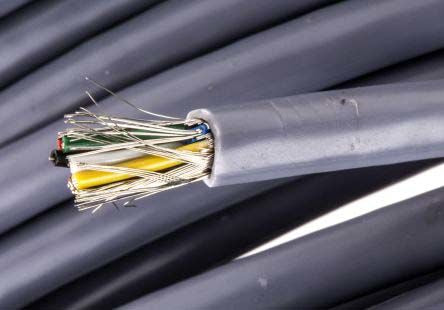

Nexans 7 Conductor Braid, Foil Industrial Cable 0.34 mm² Grey PVC Sheath, 100m Reel, SMBL Series [10038970]; 399-9717
by Nexans
0₫
Mã kho: 3999717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.34 mm² |
| Screened/Unscreened | Screened |
| Length | 100m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 5.8mm |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -20°C |
| Insulation Material | PVC |
| Series | SMBL |
| Drain Wire | No |
| Minimum Bend Radius | 10 x Diameter |
| Conductor Material | Copper |
