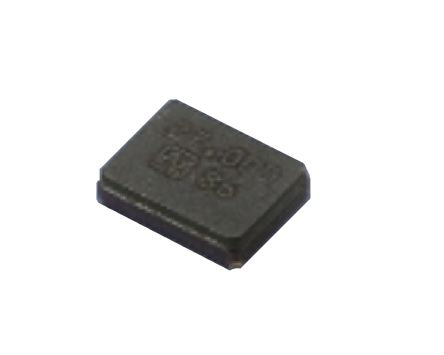

NDK 12MHz Crystal Unit SMD 4-Pin 3.2 x 2.5 x 0.75mm [NX3225GA-12.000M-STD-CRA-1]; 184-7933
by NDK
0₫
Mã kho: 1847933
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 12MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 8pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 0.75mm |
| Dimensions | 3.2 x 2.5 x 0.75mm |
| Frequency Tolerance | ±50ppm |
| Frequency Stability | ±150ppm |
| Series Resistance | 120Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 150°C |
| Automotive Standard | AEC-Q200 |
