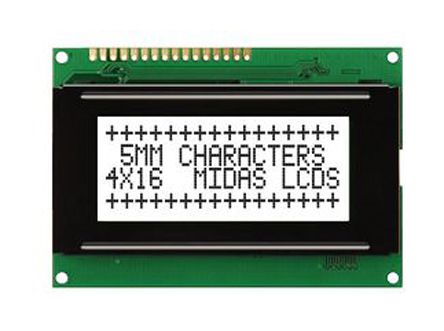

Midas MC41605A6W-FPTLW-V2 A Alphanumeric LCD Display White, 4 Rows by 16 Characters, Transflective [MC41605A6W-FPTLW-V2]; 135-9749
by Midas
0₫
Mã kho: 1359749
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Alphanumeric |
Character Matrix | 4 Rows by 16 Characters |
Character Rows | 4 |
Characters per Row | 16 |
Character Height | 4.8mm |
Character Width | 3mm |
Viewing Area Width | 61.8mm |
Viewing Area Height | 25.2mm |
Viewing Area Dimensions | 61.8 x 25.2mm |
Interface Type | 8-bit |
External Depth | 14mm |
Background Colour | White |
Backlight Type | LED |
External Height | 60mm |
External Dimensions | 87 x 14 x 60mm |
External Width | 87mm |
Display Matrix Technology | FSTN |
Display Mode | Transflective |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Driver Mounting | COB |
Voltage Rating | 4.7 → 5.5V |
Operating Temperature Range | -20 → +70°C |
Current Rating | 1.5mA |
Series | A |
