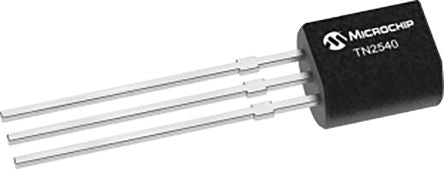

![Microchip TN2540N8-G 1779854](http://nguyenxuong.com/cdn/shop/products/Y1779854-01_444x169.jpg?v=1594110121)
TN2540N8-G N-Channel MOSFET, 260 mA, 400 (Minimum) V TN2540, 3-Pin TO-243AA Microchip Technology [TN2540N8-G]; 177-9854
by Microchip
0₫
Mã kho: 1779854
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 260 mA |
Maximum Drain Source Voltage | 400 V |
Package Type | TO-243AA |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 12 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 1.6 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 20 V |
Number of Elements per Chip | 1 |
Length | 4.6mm |
Maximum Operating Temperature | +150 °C |
Height | 1.6mm |
Series | TN2540 |
Width | 2.6mm |
Forward Diode Voltage | 1.8V |
Minimum Operating Temperature | -55 °C |
