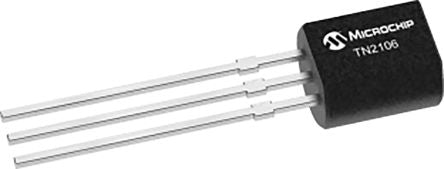

TN2106K1-G N-Channel MOSFET, 280 mA, 60 (Minimum) V TN2106, 3-Pin SOT-23 Microchip Technology [TN2106K1-G]; 177-9842
by Microchip
0₫
Mã kho: 1779842
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 280 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-236AB |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 360 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Height | 1.02mm |
| Forward Diode Voltage | 1.8V |
| Length | 3.04mm |
| Series | TN2106 |
| Maximum Operating Temperature | +150 °C |
| Width | 1.4mm |
| Minimum Operating Temperature | -55 °C |
