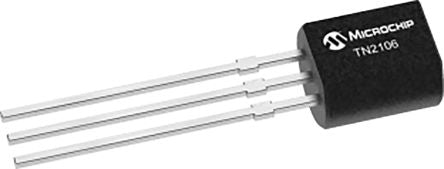

![Microchip TN2106K1-G 1779691](http://nguyenxuong.com/cdn/shop/products/Y1779691-01_444x169.jpg?v=1594066501)
TN2106K1-G N-Channel MOSFET, 280 mA, 60 (Minimum) V TN2106, 3-Pin SOT-23 Microchip Technology [TN2106K1-G]; 177-9691
by Microchip
0₫
Mã kho: 1779691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 280 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-236AB |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 5 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 360 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 20 V |
Number of Elements per Chip | 1 |
Width | 1.4mm |
Height | 1.02mm |
Maximum Operating Temperature | +150 °C |
Length | 3.04mm |
Series | TN2106 |
Minimum Operating Temperature | -55 °C |
Forward Diode Voltage | 1.8V |
