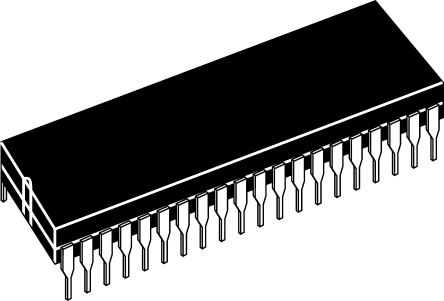

Microchip TC7107ACPL, ADC Differential Input, 40-Pin PDIP [TC7107ACPL]; 159-7435
by Microchip
0₫
Mã kho: 1597435
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of ADCs | 1 |
Number of Input Channels | 1 |
Mounting Type | Through Hole |
Architecture | Dual Slope |
Package Type | PDIP |
Pin Count | 40 |
Input Signal Type | Differential |
Input Type | Voltage |
Power Supply Type | Dual |
Integral Nonlinearity Error | 1Counts |
Typical Dual Supply Voltage | ±5V |
Maximum Operating Temperature | +70 °C |
Height | 4.06mm |
Width | 14.1mm |
Minimum Operating Temperature | 0 °C |
Dimensions | 52.45 x 14.1 x 4.06mm |
Length | 52.45mm |
