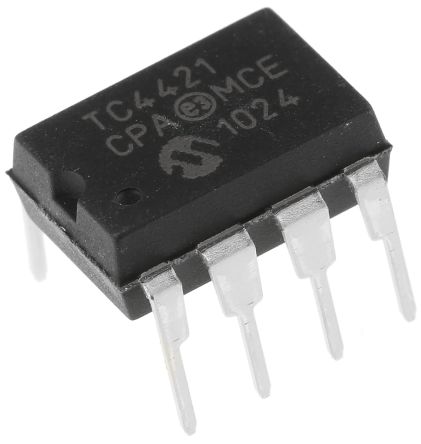

Microchip TC4421CPA Low Side MOSFET Power Driver, 9A, 4.5 → 18 V 8-Pin, PDIP [TC4421CPA]; 207-0146
by Microchip
0₫
Mã kho: 2070146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Drivers | 1 |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 18 V |
Topology | Low Side |
Mounting Type | Through Hole |
Peak Output Current | 9A |
Number of Outputs | 1 |
Polarity | Inverting |
Package Type | PDIP |
Pin Count | 8 |
Input Logic Compatibility | CMOS, TTL |
Width | 6.6mm |
Maximum Operating Temperature | +70 °C |
Length | 10.16mm |
Height | 4.06mm |
Minimum Operating Temperature | 0 °C |
Dimensions | 10.16 x 6.6 x 4.06mm |
