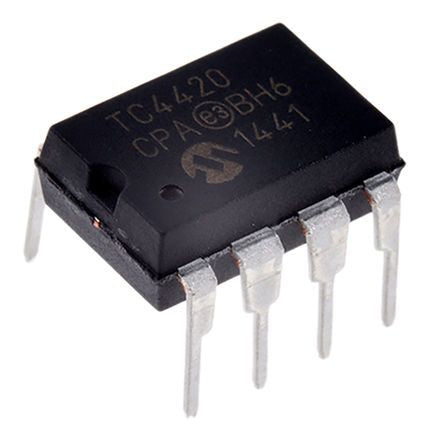

Microchip TC4420CPA Low Side MOSFET Power Driver, 6A, 4.5 → 18 V 8-Pin, PDIP [TC4420CPA]; 911-5704
by Microchip
0₫
Mã kho: 9115704
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Through Hole |
| Peak Output Current | 6A |
| Number of Outputs | 2 |
| Polarity | Non-Inverting |
| Package Type | PDIP |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| Maximum Operating Temperature | +70 °C |
| Length | 9.46mm |
| Height | 3.3mm |
| Width | 6.35mm |
| Dimensions | 9.46 x 6.35 x 3.3mm |
| Minimum Operating Temperature | 0 °C |
