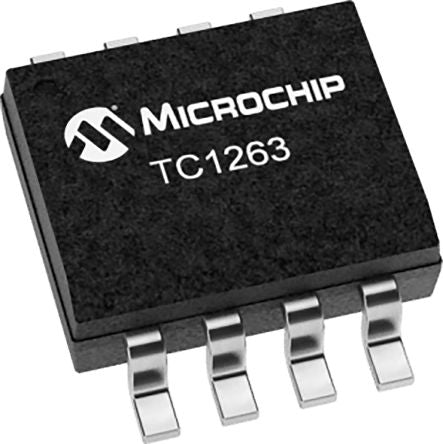

Microchip Technology TC1263-3.3VOA, LDO Voltage Regulator Controller, 500mA, 3.3 V, ±0.5% 8-Pin, SOIC [TC1263-3.3VOA]; 177-9821
by Microchip
0₫
Mã kho: 1779821
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Dropout Voltage at Maximum Current | 650 mV @ 500 mA |
| Output Type | Fixed |
| Package Type | SOIC |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 8 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Accuracy | ±0.5% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 3.99mm |
| Length | 5mm |
| Dimensions | 5 x 3.99 x 1.55mm |
| Load Regulation | ±0.01 %/mA |
| Height | 1.55mm |
| Line Regulation | 0.0035 |
| Enable | Yes |
