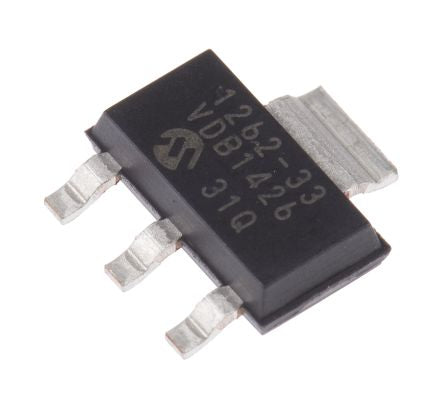

Microchip TC1262-3.3VDB, LDO Regulator, 500mA, 3.3 V, ±0.5%, 2.7 → 6 Vin 3+Tab-Pin, SOT-223 [TC1262-3.3VDB]; 703-7905
by Microchip
0₫
Mã kho: 7037905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | SOT-223 |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 3+Tab |
| Polarity | Positive |
| Number of Outputs | 1 |
| Accuracy | ±0.5% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.7mm |
| Line Regulation | 0.35 %/V |
| Length | 6.7mm |
| Width | 3.7mm |
| Load Regulation | 0.01 %/mA |
| Dimensions | 6.7 x 3.7 x 1.7mm |
