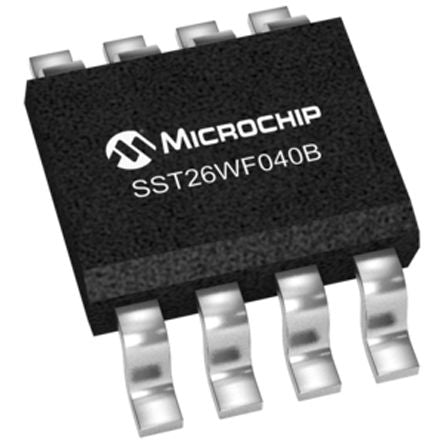

Microchip SST26WF040B-104I/SN, SPI, SQI 4Mbit Flash Memory, 8-Pin SOIC [SST26WF040B-104I/SN]; 165-4710
by Microchip
0₫
Mã kho: 1654710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 4Mbit |
| Interface Type | SPI, SQI |
| Package Type | SOIC |
| Pin Count | 8 |
| Organisation | 1M x 4 bit, 2M x 2 bit, 4M x 1 bit |
| Mounting Type | Surface Mount |
| Cell Type | Split Gate |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Operating Supply Voltage | 1.95 V |
| Length | 4.9mm |
| Height | 1.25mm |
| Width | 6mm |
| Dimensions | 4.9 x 6 x 1.25mm |
| Number of Words | 1M, 2M, 4M |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 1 bit, 2 bit, 4 bit |
| Minimum Operating Temperature | -40 °C |
