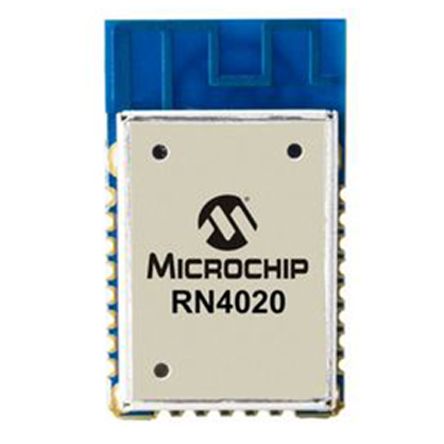

Microchip RN4020-V/RM123 Bluetooth Chip 4.1 [RN4020-V/RM123]; 916-3775
by Microchip
0₫
Mã kho: 9163775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bluetooth Version | 4.1 |
| Maximum Output Power | +7.5dBm |
| Receiver Sensitivity | -92.5dBm |
| Supported Bus Interfaces | AIO, I2C, PIO, SPI |
| Supported I/O Interfaces | MCU, RN42, Serial, UART |
| Dimensions | 19.5 x 11.5 x 2.3mm |
| Height | 2.3mm |
| Length | 19.5mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -30 °C |
| Width | 11.50mm |
