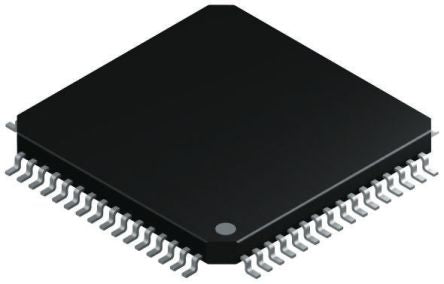

Microchip PIC32MX675F256H-80I/PT, 32bit PIC Microcontroller, 80MHz, 12 kB, 256 kB Flash, 64-Pin TQFP [PIC32MX675F256H-80I/PT]; 687-9300
by Microchip
0₫
Mã kho: 6879300
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32MX |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 32bit |
| Program Memory Size | 12 kB, 256 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 64 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 5 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2.3 → 3.6 V |
| Program Memory Type | Flash |
| Number of Timers | 5 |
| Number of I2C Channels | 4 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| ADCs | 16 x 10 bit |
| Width | 10mm |
| Pulse Width Modulation | 5(CCP) |
| Timer Resolution | 16bit |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Timers | 5 x 16 bit |
| Dimensions | 10 x 10 x 1.05mm |
| Number of UART Channels | 6 |
| Number of Ethernet Channels | 1 |
