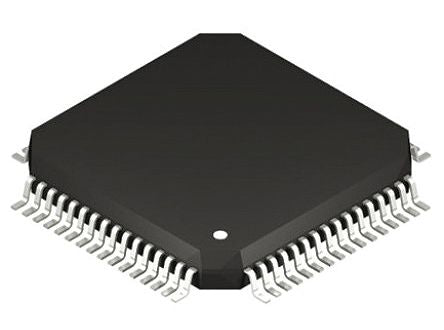

Microchip PIC32MX570F512H-50I/PT, 32bit M4K, MIPS32 Microcontroller, 50MHz, 512 kB Flash, 64-Pin TQFP [PIC32MX570F512H-50I/PT]; 165-4302
by Microchip
0₫
Mã kho: 1654302
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC32MX |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | M4K, MIPS32 |
Data Bus Width | 32bit |
Program Memory Size | 512 kB |
Maximum Frequency | 50MHz |
RAM Size | 64 kB |
USB Channels | 1 x OTG |
ADC Channels | 28 |
Number of SPI Channels | 3 |
Typical Operating Supply Voltage | 2.3 → 3.6 V |
Number of UART Channels | 4 |
Number of Timers | 2, 5 |
Number of I2C Channels | 2 |
Pulse Width Modulation | 5 |
Program Memory Type | Flash |
ADC Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Number of CAN Channels | 1 |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
ADCs | 1 (28 x 10 bit) |
Timer Resolution | 16 bit, 32 bit |
Height | 1.1mm |
Number of LIN Channels | 1 |
Width | 10mm |
Data Rate | 25Mbps |
Timers | 2 x 32 bit, 5 x 16 bit |
Dimensions | 10 x 10 x 1.05mm |
