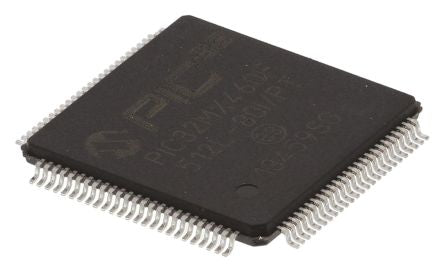

Microchip PIC32MX460F512L-80I/PT, 32bit PIC Microcontroller, 80MHz, 12 kB, 512 kB Flash, 100-Pin TQFP [PIC32MX460F512L-80I/PT]; 476-545
by Microchip
0₫
Mã kho: 476545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC32MX |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 100 |
Device Core | PIC |
Data Bus Width | 32bit |
Program Memory Size | 12 kB, 512 kB |
Maximum Frequency | 80MHz |
RAM Size | 32 kB |
USB Channels | 2 |
Number of PWM Units | 5 |
ADC Channels | 16 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 2.3 → 3.6 V |
Minimum Operating Temperature | -40 °C |
Timer Resolution | 16bit |
Height | 1.05mm |
Pulse Width Modulation | 5(CCP) |
Width | 12mm |
ADCs | 16 x 10 bit |
Length | 12mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
ADC Resolution | 10bit |
Program Memory Type | Flash |
Dimensions | 12 x 12 x 1.05mm |
Number of I2C Channels | 2 |
Timers | 5 x 16 bit |
Number of UART Channels | 2 |
Number of Timers | 5 |
