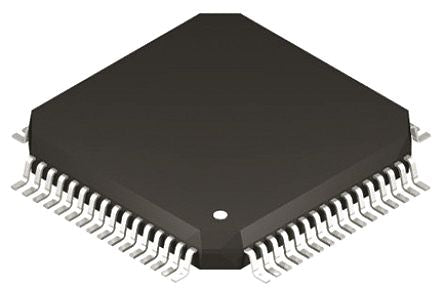

Microchip PIC32MX370F512H-I/PT, 32bit PIC Microcontroller, 100MHz, 512 + 12 kB Flash, 64-Pin TQFP [PIC32MX370F512H-I/PT]; 165-4296
by Microchip
0₫
Mã kho: 1654296
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32MX |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 32bit |
| Program Memory Size | 512 + 12 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 128 kB |
| Number of PWM Units | 1 |
| ADC Channels | 28 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.3 → 3.6 V |
| Number of I2C Channels | 2 |
| Number of Timers | 1 |
| Number of UART Channels | 4 |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | MIPS32 |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 5 |
| Dimensions | 10 x 10 x 1.05mm |
| Timers | 2 x 32 bit, 5 x 16 bit |
| PWM Channels | 5 |
| Width | 10mm |
| Length | 10mm |
| ADCs | 1 (28 x 10 bit) |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.05mm |
