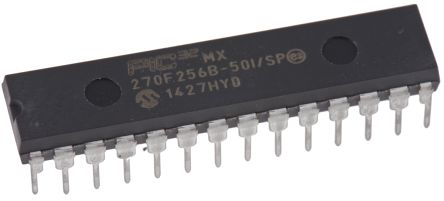

Microchip PIC32MX270F256B-50I/SP, 32bit PIC Microcontroller, 50MHz, 256 kB Flash, 28-Pin SPDIP [PIC32MX270F256B-50I/SP]; 145-9376
by Microchip
0₫
Mã kho: 1459376
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC32MX |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 32bit |
Program Memory Size | 256 kB |
Maximum Frequency | 50MHz |
RAM Size | 64 kB |
USB Channels | 1 x OTG |
Number of PWM Units | 1 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 2.3 → 3.6 V |
ADCs | 1 x 10 bit |
Timer Resolution | 16bit |
Width | 0.295in |
ADC Resolution | 10bit |
Length | 35.56mm |
Maximum Operating Temperature | +85 °C |
Timers | 5 x 16 bit |
Number of I2C Channels | 2 |
Number of Timers | 5 |
Number of UART Channels | 2 |
Program Memory Type | Flash |
Pulse Width Modulation | 1 |
Dimensions | 1.4 x 0.295 x 0.15in |
Height | 3.81mm |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
