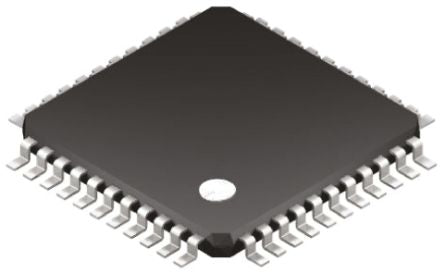

Microchip PIC32MX250F128D-50I/PT, 32bit PIC Microcontroller, 40MHz, 131 kB Flash, 44-Pin TQFP [PIC32MX250F128D-50I/PT]; 799-0357
by Microchip
0₫
Mã kho: 7990357
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32MX |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 32bit |
| Program Memory Size | 131 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 13 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.3 → 3.6 V |
| Number of ADC Units | 1 |
| Number of Timers | 1 |
| Number of I2C Channels | 2 |
| Pulse Width Modulation | 1(5 Channel) |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 2 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Dimensions | 10 x 10 x 1.05mm |
| Timers | 5 x 16 bit |
| Number of LIN Channels | 1 |
| PWM Channels | 5 |
| Timer Resolution | 16bit |
| Length | 10mm |
| ADCs | 1(13 x 10 bit) |
| Height | 1.05mm |
| Width | 10mm |
