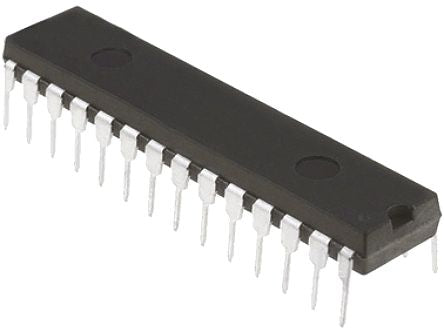

Microchip PIC32MX230F064B-I/SP, 32bit PIC Microcontroller, 50MHz, 64 + 3 kB Flash, 28-Pin SPDIP [PIC32MX230F064B-I/SP]; 165-2103
by Microchip
0₫
Mã kho: 1652103
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32MX |
| Package Type | SPDIP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 32bit |
| Program Memory Size | 64 + 3 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 5 |
| ADC Channels | 9 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.3 → 3.6 V |
| Number of ADC Units | 1 |
| Height | 3.81mm |
| Number of LIN Channels | 2 |
| Width | 0.295in |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Dimensions | 1.4 x 0.295 x 0.15in |
| Instruction Set Architecture | MIPS32 |
| PWM Resolution | 16 bit, 32 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Timer Resolution | 16 bit, 32 bit |
| ADCs | 1(9 x 10 bit) |
| Length | 35.56mm |
| Maximum Operating Temperature | +85 °C |
| Number of I2C Channels | 2 |
| Number of Timers | 5 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 5 x 16/32 bit |
