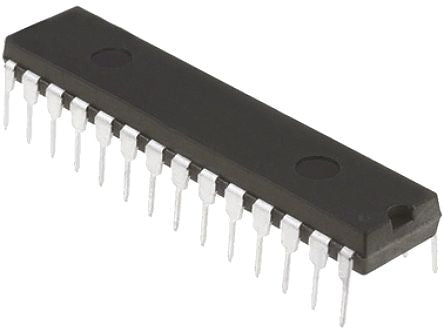

Microchip PIC32MX150F128B-50I/SP, 32bit PIC Microcontroller, 50MHz, 128 + 3 kB Flash, 28-Pin PDIP [PIC32MX150F128B-50I/SP]; 823-3955
by Microchip
0₫
Mã kho: 8233955
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC32MX |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 32bit |
| Program Memory Size | 128 + 3 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 5 |
| ADC Channels | 10 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.3 to 3.6 V |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Number of Timers | 5 |
| Timer Resolution | 16bit |
| Height | 3.81mm |
| Width | 0.295in |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Timers | 5 x 16 bit |
| Dimensions | 1.4 x 0.295 x 0.15in |
| Maximum Operating Temperature | +85 °C |
| Length | 35.56mm |
| ADCs | 1(10 x 10 bit) |
