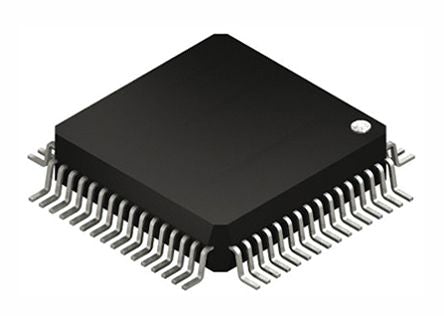

Microchip PIC24HJ64GP506-I/PT, 16bit PIC Microcontroller, 40MIPS, 64 kB Flash, 64-Pin TQFP [PIC24HJ64GP506-I/PT]; 623-0960
by Microchip
0₫
Mã kho: 6230960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24HJ |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 40MIPS |
| RAM Size | 8 kB |
| Number of PWM Units | 8 |
| ADC Channels | 18 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of Timers | 9 |
| Number of I2C Channels | 2 |
| ADC Resolution | 12bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 1 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| ADCs | 18 x 12 bit |
| Width | 10mm |
| Dimensions | 10 x 10 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Height | 1.05mm |
| Program Memory Type | Flash |
| Timers | 9 x 16 bit |
| Pulse Width Modulation | 8(16 bit) |
| Number of UART Channels | 2 |
