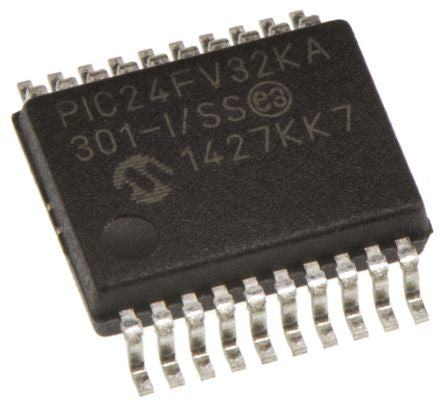

Microchip PIC24FV32KA301-I/SS, 16bit PIC Microcontroller, 32MHz, 32 kB Flash, 20-Pin SSOP [PIC24FV32KA301-I/SS]; 144-5810
by Microchip
0₫
Mã kho: 1445810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24FV |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2.048 kB, 512 B |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| Pulse Width Modulation | 3 x 16 bit |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Number of Timers | 5 |
| Timers | 5 x 16 bit |
| Width | 5.6mm |
| PWM Channels | 3 |
| Height | 1.85mm |
| Timer Resolution | 16bit |
| ADCs | 12 x 12 bit |
| Length | 7.5mm |
| Number of I2C Channels | 2 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | DSP, RISC |
