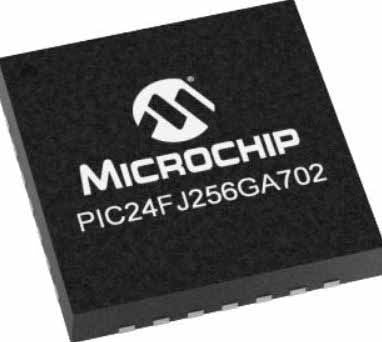

![Microchip PIC24FJ256GA702-I/ML 1463255](http://nguyenxuong.com/cdn/shop/products/R1463255-01_382x342.jpg?v=1594251791)
Microchip PIC24FJ256GA702-I/ML, 32bit 32 bit CPU Microcontroller, 32MHz, 256 kB Flash, 28-Pin QFN [PIC24FJ256GA702-I/ML]; 146-3255
by Microchip
0₫
Mã kho: 1463255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC24 |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | 32 bit CPU |
Data Bus Width | 32bit |
Program Memory Size | 256 kB |
Maximum Frequency | 32MHz |
RAM Size | 16 kB |
Number of PWM Units | 1 |
ADC Channels | 10 |
Number of SPI Channels | 3 |
Typical Operating Supply Voltage | 2 → 3.6 V |
Number of UART Channels | 2 |
Number of Timers | 3 |
Number of I2C Channels | 2 |
PWM Channels | 3 |
Width | 6mm |
Data Rate | 4Mbit/s |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
ADC Resolution | 10 bit, 12 bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | MIPS32 |
Length | 6mm |
ADCs | 1 (10 x 10 bit), 1 (10 x 12 bit) |
Number of USART Channels | 2 |
Dimensions | 6 x 6 x 0.95mm |
Pulse Width Modulation | 1 (3 Channel) |
Program Memory Type | Flash |
Timer Resolution | 16bit |
Height | 0.95mm |
Number of LIN Channels | 2 |
