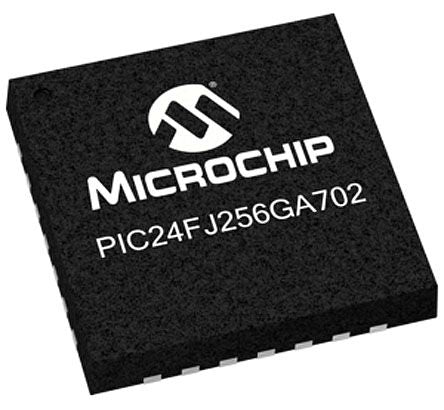

Microchip PIC24FJ256GA702-I/ML, 16bit PIC24 Microcontroller, 32MHz, 256 kB Flash, 28-Pin QFN [PIC24FJ256GA702-I/ML]; 126-2162
by Microchip
0₫
Mã kho: 1262162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24FJ |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC24 |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 16 kB |
| Number of PWM Units | 1 |
| ADC Channels | 10 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| PWM Channels | 3 |
| Height | 0.95mm |
| Timer Resolution | 16bit |
| Pulse Width Modulation | 1(3 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 1 |
| Width | 6mm |
| ADCs | 1(10 x 10 bit/), 1(10 x 12 bit) |
| Dimensions | 6 x 6 x 0.95mm |
| Timers | 1(3 x 16 bit) |
| Length | 6mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Modified Harvard |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| ADC Resolution | 10 bit, 12 bit |
