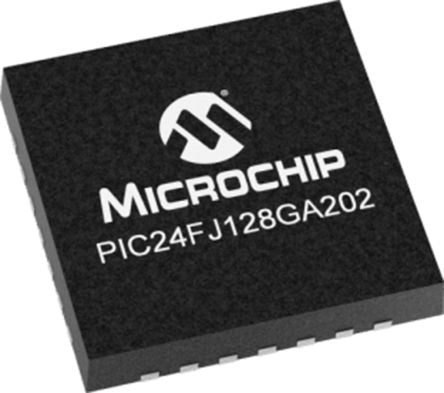

Microchip Technology PIC24FJ128GA202-I/MM, 16bit PIC Microcontroller, 32MHz, 128 kB Flash, 28-Pin QFN [PIC24FJ128GA202-I/MM]; 177-2540
by Microchip
0₫
Mã kho: 1772540
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24FJ |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 1 |
| ADC Channels | 10 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Number of Timers | 2 |
| ADCs | 1 (10 x 12 bit) |
| Length | 6mm |
| Number of UART Channels | 4 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Modified Harvard |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| PWM Resolution | 16bit |
| Dimensions | 6 x 6 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16 bit, 32 bit |
| Height | 0.95mm |
| PWM Channels | 6 |
| Width | 6mm |
| ADC Resolution | 12bit |
| Number of I2C Channels | 2 |
