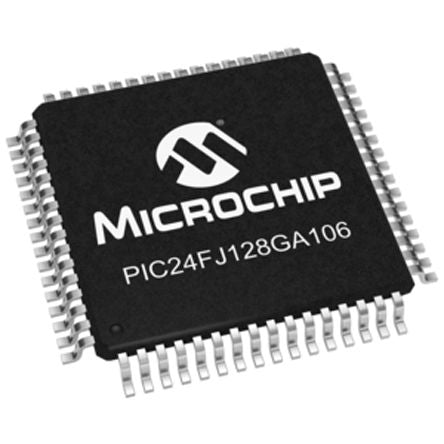

Microchip PIC24FJ128GA106-I/PT, 16bit PIC Microcontroller, 32MHz, 128 kB Flash, 64-Pin TQFP [PIC24FJ128GA106-I/PT]; 666-9428
by Microchip
0₫
Mã kho: 6669428
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24FJ |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 16 kB |
| Number of PWM Units | 9 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Pulse Width Modulation | 9(16 bit) (Compare/PWM) |
| Width | 10mm |
| ADCs | 16 x 10 bit |
| Length | 10mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Height | 1.05mm |
| Number of I2C Channels | 3 |
| Number of Timers | 5 |
| Number of UART Channels | 4 |
| Program Memory Type | Flash |
| Timers | 5 x 16 bit |
| Dimensions | 10 x 10 x 1.05mm |
