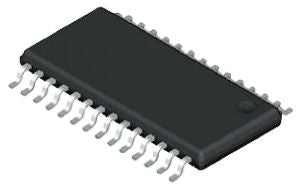

Microchip PIC24F16KA302-I/SS, 16bit PIC Microcontroller, 32MHz, 16 kB Flash, 28-Pin SSOP [PIC24F16KA302-I/SS]; 146-0177
by Microchip
0₫
Mã kho: 1460177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC24F |
Package Type | SSOP |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 16bit |
Program Memory Size | 16 kB |
Maximum Frequency | 32MHz |
RAM Size | 2.048 kB, 512 B |
Number of PWM Units | 1 |
ADC Channels | 13 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 1.8 → 3.6 V |
PWM Channels | 3 |
Width | 5.6mm |
Height | 1.85mm |
Timer Resolution | 16bit |
ADCs | 13 x 12 bit |
Length | 10.5mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | DSP, RISC |
PWM Resolution | 16bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 12bit |
Number of I2C Channels | 2 |
Number of Timers | 5 |
Number of UART Channels | 2 |
Program Memory Type | Flash |
Pulse Width Modulation | 3 x 16 bit |
Dimensions | 10.5 x 5.6 x 1.85mm |
Timers | 5 x 16 bit |
