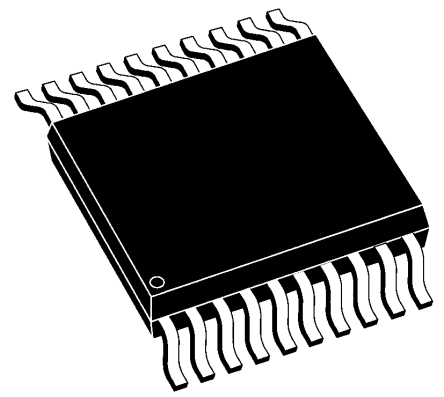

Microchip PIC24F16KA101-I/SS, 16bit PIC Microcontroller, 32MHz, 16 kB Flash, 20-Pin SSOP [PIC24F16KA101-I/SS]; 667-0248
by Microchip
0₫
Mã kho: 6670248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1.5 kB |
| Number of PWM Units | 1 |
| ADC Channels | 9 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of Timers | 3 |
| Width | 5.6mm |
| Pulse Width Modulation | 1(16 bit) (Compare/PWM) |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Number of I2C Channels | 1 |
| ADCs | 9 x 10 bit |
| Number of UART Channels | 2 |
| Length | 7.5mm |
| Program Memory Type | Flash |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| Timers | 3 x 16 bit |
| Height | 1.85mm |
| Timer Resolution | 16bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
