![Microchip PIC24EP256MC204-I/PT 1773969](http://nguyenxuong.com/cdn/shop/products/Y1773969-01_444x369.jpg?v=1594146683)

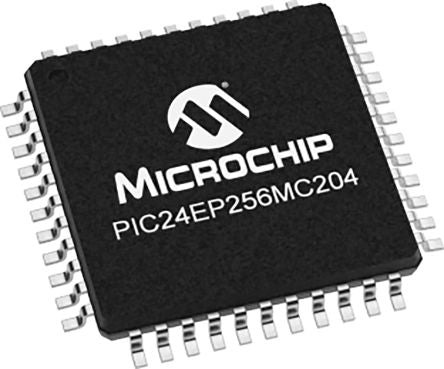

Microchip Technology PIC24EP256MC204-I/PT, 16bit PIC Microcontroller, 60MHz, 256 kB Flash, 44-Pin TQFP [PIC24EP256MC204-I/PT]; 177-3969
by Microchip
0₫
Mã kho: 1773969
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC24E |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 16bit |
Program Memory Size | 256 kB |
Maximum Frequency | 60MHz |
RAM Size | 32 kB |
Number of PWM Units | 1 |
ADC Channels | 9 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 3.6 (Maximum) V |
ADC Resolution | 12bit |
Width | 10mm |
PWM Channels | 6 |
Height | 1.05mm |
Timer Resolution | 16 bit, 32 bit |
Number of I2C Channels | 2 |
Number of Timers | 2 |
ADCs | 1 (9 x 12 bit) |
Length | 10mm |
Number of UART Channels | 2 |
Automotive Standard | AEC-Q100 |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Pulse Width Modulation | 1 (6 Channel) |
Dimensions | 10 x 10 x 1.05mm |
Minimum Operating Temperature | -40 °C |
Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
