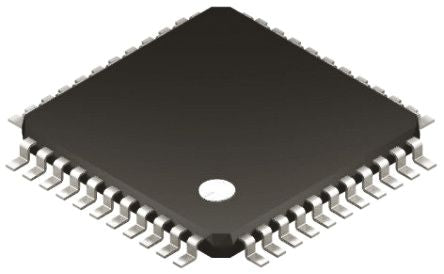

Microchip PIC24EP256GP204-I/PT, 16bit PIC Microcontroller, 140MHz, 256 kB Flash, 44-Pin TQFP [PIC24EP256GP204-I/PT]; 165-2180
by Microchip
0₫
Mã kho: 1652180
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24EP |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 140MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 4 |
| ADC Channels | 9 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Pulse Width Modulation | 4 |
| Dimensions | 10 x 10 x 1.05mm |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Number of Timers | 5 |
| Width | 10mm |
| Number of LIN Channels | 2 |
| Height | 1.05mm |
| Timer Resolution | 16 bit, 32 bit |
| Length | 10mm |
| ADCs | 1(9 x 10bit)/1(9 x 12bit) |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Harvard |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10 bit, 12 bit |
