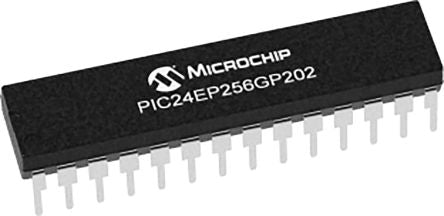

Microchip Technology PIC24EP256GP202-I/SP, 16bit PIC Microcontroller, 60MHz, 256 kB Flash, 28-Pin SPDIP [PIC24EP256GP202-I/SP]; 177-2212
by Microchip
0₫
Mã kho: 1772212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24E |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 6 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| ADC Resolution | 12bit |
| Width | 7.37mm |
| PWM Channels | 6 |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Height | 3.81mm |
| Timer Resolution | 16 bit, 32 bit |
| Instruction Set Architecture | C Compiler |
| Automotive Standard | AEC-Q100 |
| Number of UART Channels | 2 |
| Length | 35.56mm |
| ADCs | 1 (6 x 12 bit) |
| Number of I2C Channels | 2 |
| Number of Timers | 2 |
| Pulse Width Modulation | 1 (6 Channel) |
| Dimensions | 1.4 x 0.29 x 0.15in |
