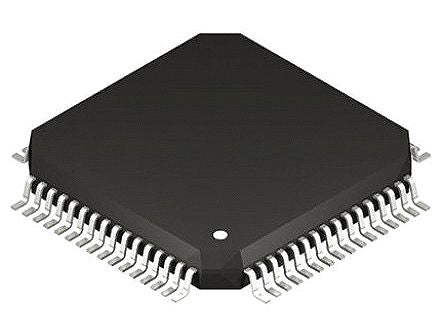

Microchip PIC24EP128MC206-I/PT, 16bit PIC24 Microcontroller, 70MHz, 128 kB Flash, 64-Pin TQFP [PIC24EP128MC206-I/PT]; 165-4040
by Microchip
0₫
Mã kho: 1654040
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC24EP |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | PIC24 |
Data Bus Width | 16bit |
Program Memory Size | 128 kB |
Maximum Frequency | 70MHz |
RAM Size | 16 kB |
ADC Channels | 16 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 3 → 3.6 V |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
ADCs | 1 (16 x 10/12 bit) |
Timer Resolution | 16/32bit |
Height | 1.1mm |
ADC Resolution | 10 bit, 12 bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | C |
Number of I2C Channels | 2 |
Program Memory Type | Flash |
Number of UART Channels | 2 |
Number of Timers | 5 |
Data Rate | 17.5Mbps |
Timers | 5 x 16/32 bit |
Dimensions | 10 x 10 x 1.05mm |
Pulse Width Modulation | 6 (Motor Control) |
Width | 10mm |
