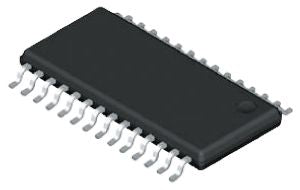

Microchip PIC18LF24K22-I/SS, 8bit PIC Microcontroller, 64MHz, 16 kB Flash, 28-Pin SSOP [PIC18LF24K22-I/SS]; 178-4911
by Microchip
0₫
Mã kho: 1784911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 256 B, 768 B |
| Number of PWM Units | 5 |
| ADC Channels | 17 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Number of USART Channels | 2 |
| Timers | 3 x 8 bit, 4 x 16 bit |
| Dimensions | 10.2 x 5.3 x 1.75mm |
| Pulse Width Modulation | 1 x 10 bit, 2(2 x 10 bit) |
| Number of Timers | 7 |
| Number of I2C Channels | 2 |
| Program Memory Type | Flash |
| Length | 10.2mm |
| ADCs | 17 x 10 bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.75mm |
| PWM Channels | 5 |
| Width | 5.3mm |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
