![Microchip PIC18F86K22-I/PT 1653299](http://nguyenxuong.com/cdn/shop/products/L0228532-01_a9a96612-4c5f-471d-9189-45503fec64eb_444x285.gif?v=1594317753)

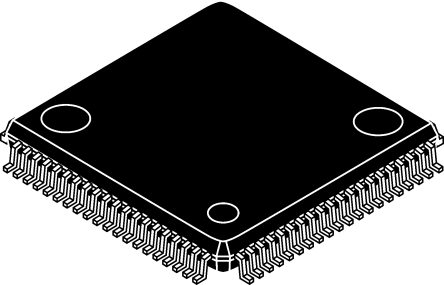

Microchip PIC18F86K22-I/PT, 8bit PIC Microcontroller, 64MHz, 1 kB, 64 kB Flash, 80-Pin TQFP [PIC18F86K22-I/PT]; 165-3299
by Microchip
0₫
Mã kho: 1653299
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 80 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 1 kB, 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 4 kB |
Number of PWM Units | 10 |
ADC Channels | 24 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Number of Timers | 11 |
Number of I2C Channels | 2 |
ADC Resolution | 12bit |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Length | 12mm |
ADCs | 24 x 12 bit |
Dimensions | 12 x 12 x 1.05mm |
Height | 1.05mm |
Width | 12mm |
Number of USART Channels | 2 |
Timers | 5 x 16 bit, 6 x 8 bit |
Pulse Width Modulation | 3(ECCP), 7(CCP) |
Timer Resolution | 8 bit, 16 bit |
