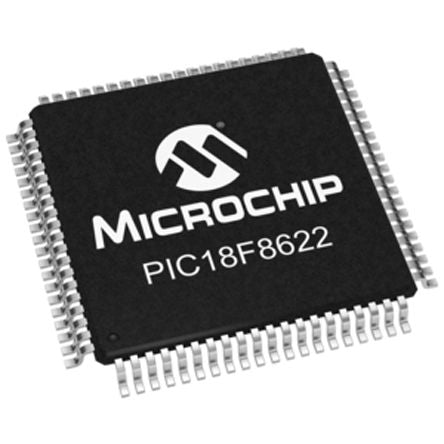

Microchip PIC18F8622-E/PT, 8bit PIC Microcontroller, 40MHz, 64 kB Flash, 80-Pin TQFP [PIC18F8622-E/PT]; 144-5854
by Microchip
0₫
Mã kho: 1445854
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 3.936 kB |
| Number of PWM Units | 3 |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| Dimensions | 12 x 12 x 1.05mm |
| Timers | 2 x 8 bit, 3 x 16 bit |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Number of Timers | 5 |
| Pulse Width Modulation | 3 |
| Number of USART Channels | 2 |
| Number of I2C Channels | 2 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Width | 12mm |
| Height | 1.05mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (16 x 10 bit) |
| Length | 12mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
