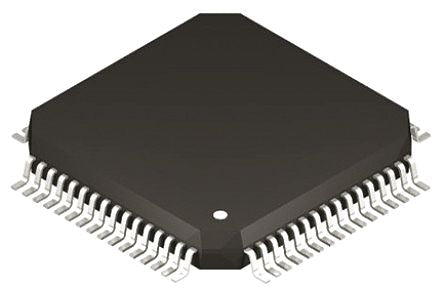

Microchip PIC18F66J94-I/PT, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 64-Pin TQFP [PIC18F66J94-I/PT]; 165-2171
by Microchip
0₫
Mã kho: 1652171
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 7 |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of I2C Channels | 2 |
| Number of Timers | 4 |
| Number of UART Channels | 4 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 7 (CCP) |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| Number of ADC Units | 1 |
| ADCs | 1(16 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.05mm |
| Width | 10mm |
| Number of USART Channels | 4 |
| Timers | 4 x 16 bit |
| Dimensions | 10 x 10 x 1.05mm |
