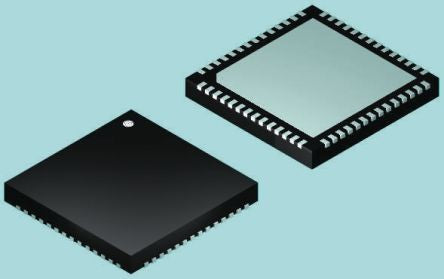

Microchip PIC18F46K80-I/ML, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 44-Pin QFN [PIC18F46K80-I/ML]; 178-4903
by Microchip
0₫
Mã kho: 1784903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 1.024 kB, 3.648 kB |
| Number of PWM Units | 2 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 x 10 bit, 4 x 10 bit |
| Dimensions | 8 x 8 x 0.88mm |
| Width | 8mm |
| Number of USART Channels | 2 |
| Timers | 2 x 8 bit, 3 x 16 bit |
| PWM Channels | 5 |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Height | 0.88mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 11 x 12 bit |
| Length | 8mm |
| Number of ADC Units | 1 |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +85 °C |
