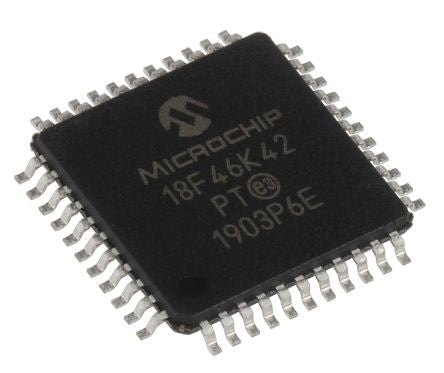

Microchip Technology PIC18F46K42-I/PT Microcontroller [PIC18F46K42-I/PT]; 171-7864
by Microchip
0₫
Mã kho: 1717864
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 35 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 V |
| Number of UART Channels | 2 |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Height | 1.05mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (35 x 12 bit) |
| Length | 10mm |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (4 x 10 bit) |
| Dimensions | 10 x 10 x 1.05mm |
| Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
| Width | 10mm |
| Number of LIN Channels | 1 |
| PWM Channels | 4 |
