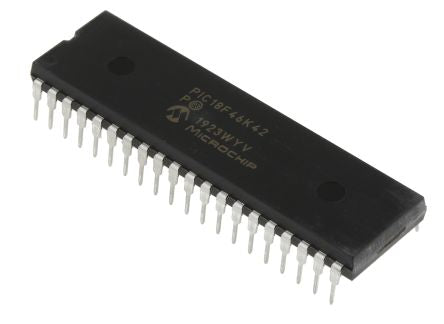

Microchip Technology PIC18F46K42-I/P, 8bit MCU Microcontroller, 64MHz, 64 kB Flash, 40-Pin PDIP [PIC18F46K42-I/P]; 176-5489
by Microchip
0₫
Mã kho: 1765489
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | MCU |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 4.096 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 35 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Program Memory Type | Flash |
| Dimensions | 2.09 x 0.58 x 0.19mm |
| Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
| Number of I2C Channels | 2 |
| Pulse Width Modulation | 1 (1 x 10 bit) |
| Number of UART Channels | 2 |
| Number of Timers | 7 |
| ADCs | 1 (35 x 12 bit) |
| Length | 2.09mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 10bit |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.19mm |
| Number of LIN Channels | 1 |
| PWM Channels | 1 |
| Width | 0.58mm |
