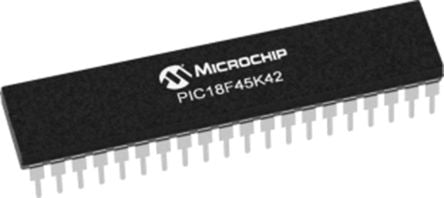

Microchip PIC18F45K42-I/P, 8bit 8 bit CPU Microcontroller, 64MHz, 32 kB Flash, 40-Pin PDIP [PIC18F45K42-I/P]; 146-3251
by Microchip
0₫
Mã kho: 1463251
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| PWM Channels | 4 |
| Width | 14.73mm |
| Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
| Dimensions | 53.21 x 14.73 x 4.95mm |
| Pulse Width Modulation | 1 (4 Channel) |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Height | 4.95mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (24 x 12 bit) |
| Length | 53.21mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Number of I2C Channels | 2 |
| Number of Timers | 3, 4 |
